The Phuel Compact Safety Head is a large-bore, hydraulically-controlled wireline intervention valve for direct installation above the Xmas Tree. It meets NORSOK certification, and its compact design allows deployment through the intervention hatch, avoiding deferred production and heavy lifting. Its unique cutting mechanism cleanly severs wireline cables without damaging the sealing function. A floating valve provides a well-pressure barrier, initially energized by the mechanism and further by differential pressure. A lower volume piston cycle reduces accumulator burden, complying with safety regulations.

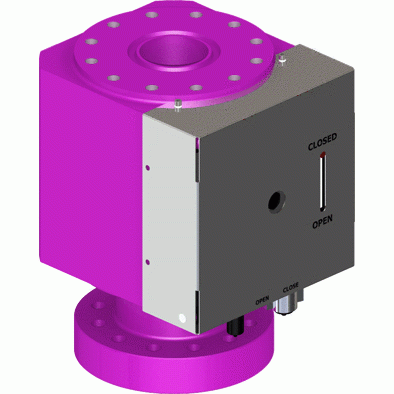

Compact Safety Head
Technical Features
- Manufactured to API 6A
- Manufactured to API 6A
- Qualified in accordance with Norsok D-002 and API 16A
- Compact design allows installation through the intervention hatch

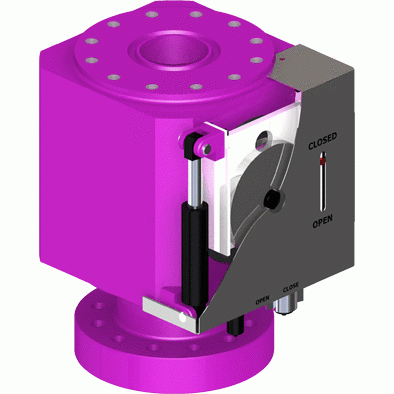

- Separate cutting and sealing face ensures that the cutting process does not damage the sealing area
- Available for applications up to 10,000 psi
- Floating valve which contains well pressure and can be easily replaced if needed

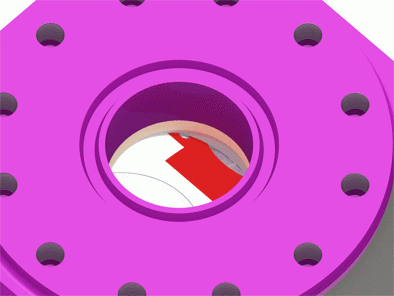

- Replaceable cutting blade for low cost replacement parts
- Low operating pressure, small displacement volume open – close (2ltr) using any operating fluid
Cutting Capabilities
- 15mm Carbon Rod
- 24mm Hydraulic Hose
- Capillary tubing
Product images and features
